Humpty Dumpty ( I hope not! ) - Part 1, The Re-Plumb

After two years of ups and downs on this project, it's time to put her back together!

The parts were all checked, clean, and their new hardware were tested and installed prior to their final placement in the fuselage.

I can't wait to get this room back.

The cockpit is painted and the first "to do" is replumbing the pneumatics.


I have purchased new PVC tubing, nickle plated metal connectors and a replacement 5-way Quick Connector from Cumulus Soaring. I also bought replacement semi-rigid polyethylene tubing for the runs through the cockpit sides.

Before replumbing the glider, I needed to get the tow release installed and the nose bulkhead resealed and secured, and mount the ground wires.

I first made the ground wires. The wire ends were crimped, soldered and sealed with heat shrink tubing.



There were two ground wires made. One for the rudder pedal adjustment rail, and one of the tow release.



The ground wires were taped to the floor of the glider, and then a few strips of fiberglass fabric were applied and sealed with resin.


The forward wire was a simple straight shot to where the foot pedal adjustment rail.




The wire needed for the tow release had a curve in it to keep it clear of the cable release arm.






The wire was also taped down to hold it in place, while a mix of chopped glass and fabric, wet with resin was, was applied.



After the resin cured, the wire was test fitted to the pole use for the cable release arm.




The next step, was to mount the brake cable housing.

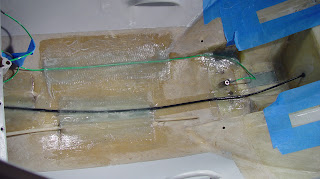

Since the cable housing is fairly rigid and springy, I needed to weigh the housing down, when I was applying the fiberglass.

I followed the original groove, left behind by the old break cable housing.


A layer of peel ply blended the edges of the glass while the resin cured.





Weights and peel ply removed.







The original opening into the wheel well was a jagged opening that the cable sawed across. I sealed the opening and the drilled a new opening that a rubber grommet could fit in.

I slid the brake cable housing through the grommet.
Neat and clean.









The grommet and cable from inside the painted wheel well.






It's time to install the tow release and the nose bulked. I installed the steel cable on the tow release, and using Tim Mara's advice to install the tow release, I rotated the fuselage inverted, which made it easier to reach the mounting plate.



I attached the tow release and fed the cable into the plastic rigid tubing.

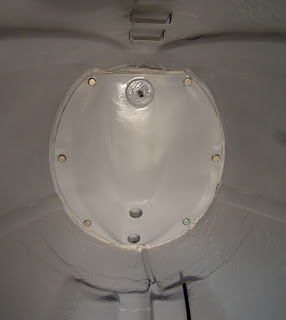

The nose bulkhead was a bit tricky. I found the tape putty used to seal windows. This was the same type used in the original seal years back.

I softened the sealant, and spread it on the lip of the bulkhead, like it was originally. then I reattached the bolts and tightened them evenly around the frame so the sealant would spread out. After the bulked was tightened down, any excess sealant was removed. I then used a little alcohol to clean up the area. To test the seal, I attached a shop-vac to the tow hook release opening and with the vacuum set to blow, I was able to pressurize the nose chamber to detect any leaks around the seal.




I installed the rudder pedals and fed the steel cable through the original rigid tubing.
Using the pull string I ran through the tail boom for the COAX run, I was able to pull a replacement RG-58 COAX for the antenna. It was the easiest part of the project so far!


The transponder uses RG-400 and is a little stiffer, but it pulled well into the area aft of the wheel well.

I then pulled the pre-measured runs of semi-rigid polyethylene tubing to complete the pneumatics in the cockpit sides.

The vinyl tubing from Winter was cut and attached to the rigid tube segments. I used tube clamps to secure them. I hope never to see a tube separate like the ones I found when I first inspected this glider.

I attached the capacity flask using the same technique.

And finally, I connected the pitot, TE, Flask, and static tubes to a 5-way connector, and color coded them.

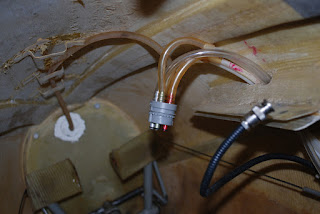

Here is a before and after shot of the forward cockpit.




















Next,  .... let's do some wiring ....
